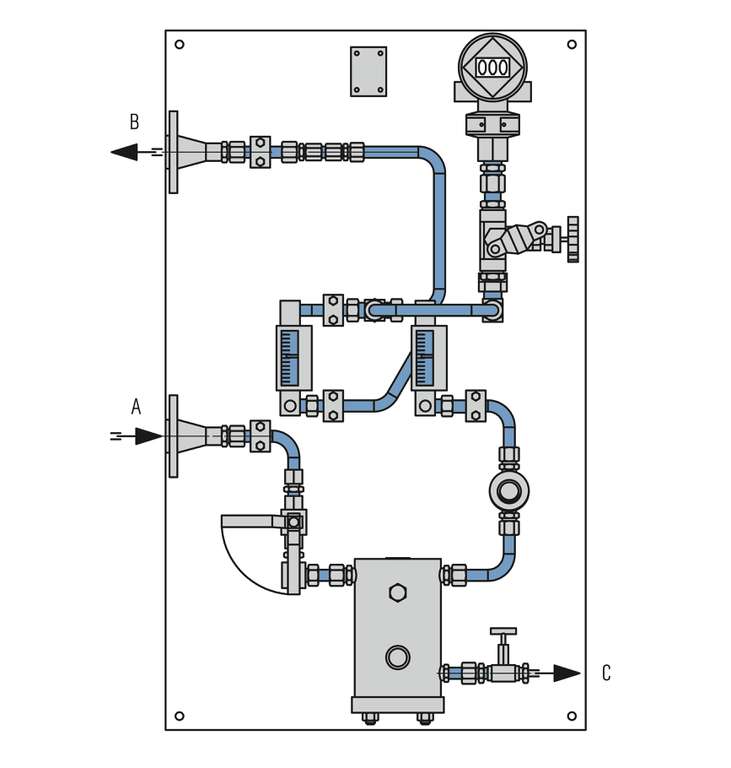

GSS6001
Gas supply system
A Gas IN
B Gas OUT
C Drain

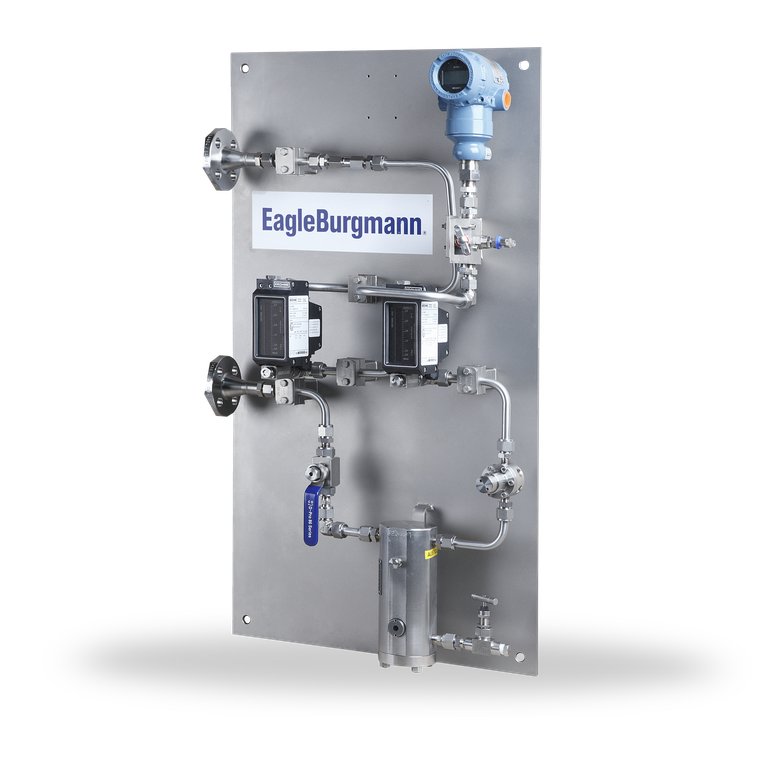

GSS6001
Gas supply system
Features
- Safe operation thanks to incorporated pressure regulator with upstream filter
- System mounted on a plate
- Easy wall or rack mounting
Advantages
- Coalescing filter with integrated sight-glass for monitoring liquid level to ensure safe operation even in case of poor gas quality.
- Rigid base frame for easy rack mounting.
- Wide range of flow monitoring to ensure utmost reliability of mechanical seals.
Standards and approvals
- API 682 / ISO 21049
- API 682 4th ed. Cat. 2/3 - 3NC-FB
- API 682 4th ed. Cat. 2/3 - 3NC-BB
- API 682 4th ed. Cat. 2/3 - 3NC-FF
- API 682 4th ed. Cat. 1 - 3NC-BB
Recommended applications
- Refining technology
- Oil and gas industry
- Petrochemical industry
- Chemical industry
- Power plant technology
Functional description
Main GSS functions:
- Filtering of the buffer and flushing gas
- Pressure monitoring and regulation
- Flow monitoring
Typical tasks for the GSS:
- Barrier/buffer gas supply for dual seals
- Gas supply for tandem seals
Notes
3rd party inspection and other certificates on request.
Recommended piping plans
Product variants
| Designation | GSS6001A4M001-D0 |
| API piping plan | Plan 74 |
| Design code | ASME |
| Allowable pressure1) | 40 bar (580 PSI) |
| Allowable temperature1) | -20 °C … +50 °C (-4 °F … +122 °F) |
| Process connections | Flange 1/2", 600 lbs |
| Metal parts | 316/316L |
Other versions on request.
1) Design data, permissible working values depend on the actual conditions of service.
