BuraGlas 9480

Request product

BuraGlas 9480

BuraGlas 9480
Request product

BuraGlas 9480

Features

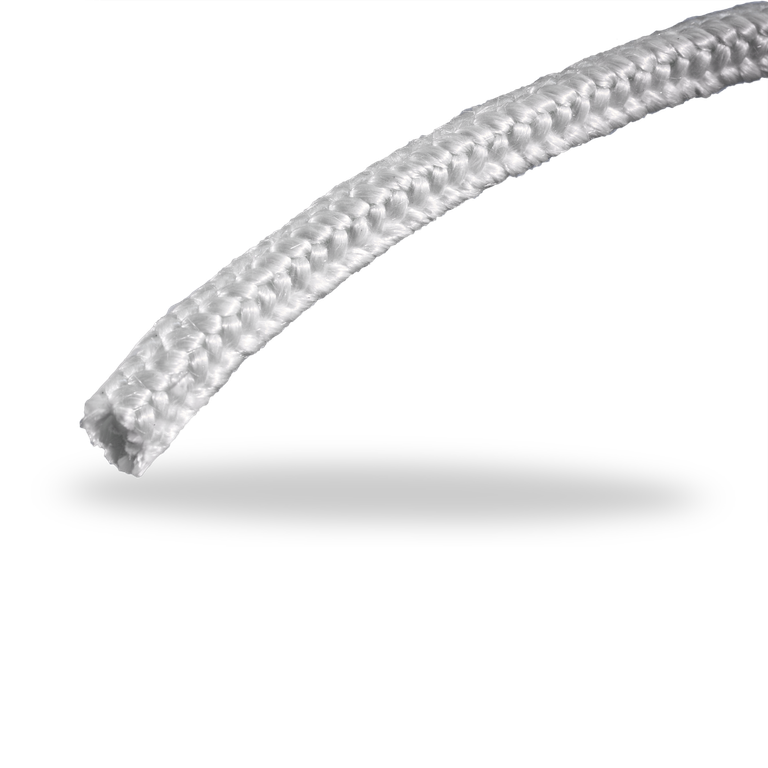

BuraGlas 9480 is a square braided glass fiber packing made from texturized glass yarn. BuraGlas braided materials contain no combustible backings and so are non-flammable.

Advantages

  • High temperature stability
  • Square braiding
  • High flexibility

Operating range

Pressure: p = 10 bar

Temperature
  • Continuous operation:
    t = -100 °C … +550 °C

Chemical resistance:
pH = 5 ... 9
Resistant to water, steam, oil, neutral and dry gases.

Standards and approvals

  • Hydrolytic class 1 to DIN 12 111

Variants

9480/P (graphited)

Forms of supply

  • Sold by length, blank cuts, precompressed rings with straight or slanted cut
  • Box contents
    up to 6,35 mm: 1 kg
    7 - 10 mm: 2 kg
    11 - 13 mm: 3 kg
    14 - 24 mm: 5 kg
    from 25 mm: 10 kg
  • Individual dimensions available upon request
